三通球阀组

利用于船舶海水过滤系统

大型船舶发起机的持续运行，离不开不变的海水冷却系统。

而在这一系统中，过滤器的陆续运行直接关系到整套系统的安全与不变。

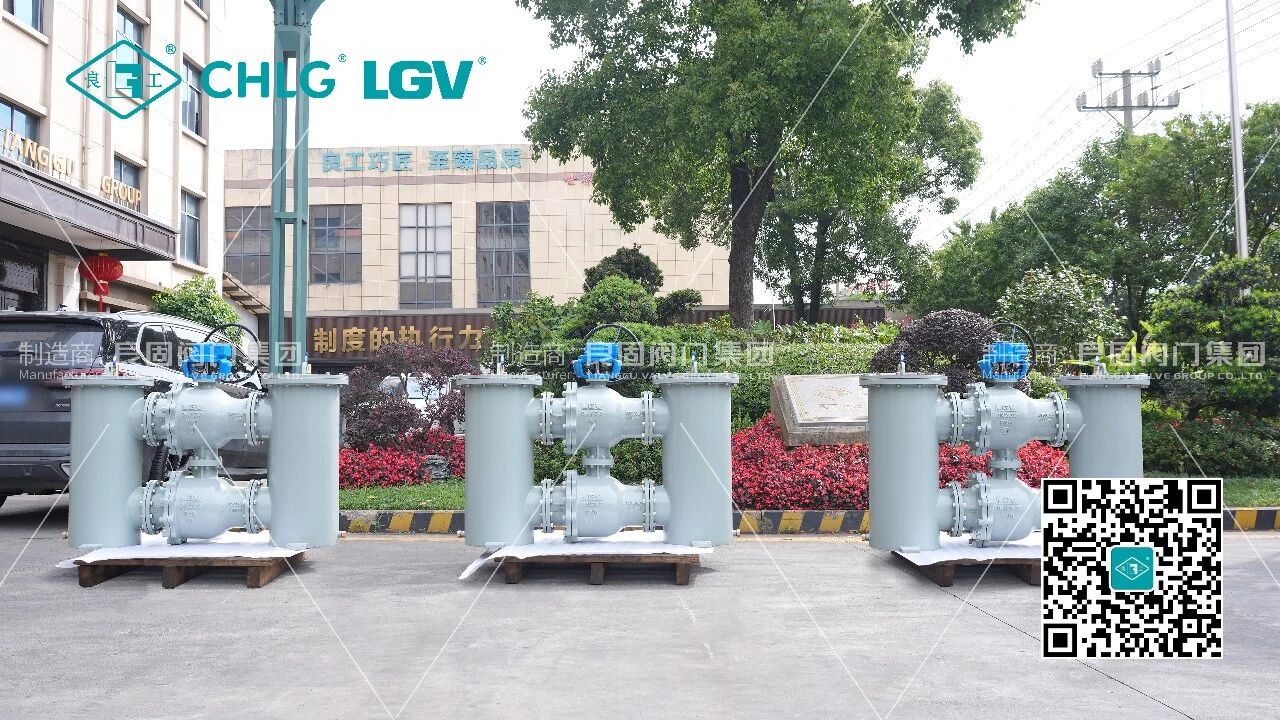

船舶海水过滤系统通常选取双路设计：一路运行，一路备用；或一路守护，另一路持续工作。

那么，两路过滤系统若何实现不；⒉恢卸稀⒖康米∏谢？

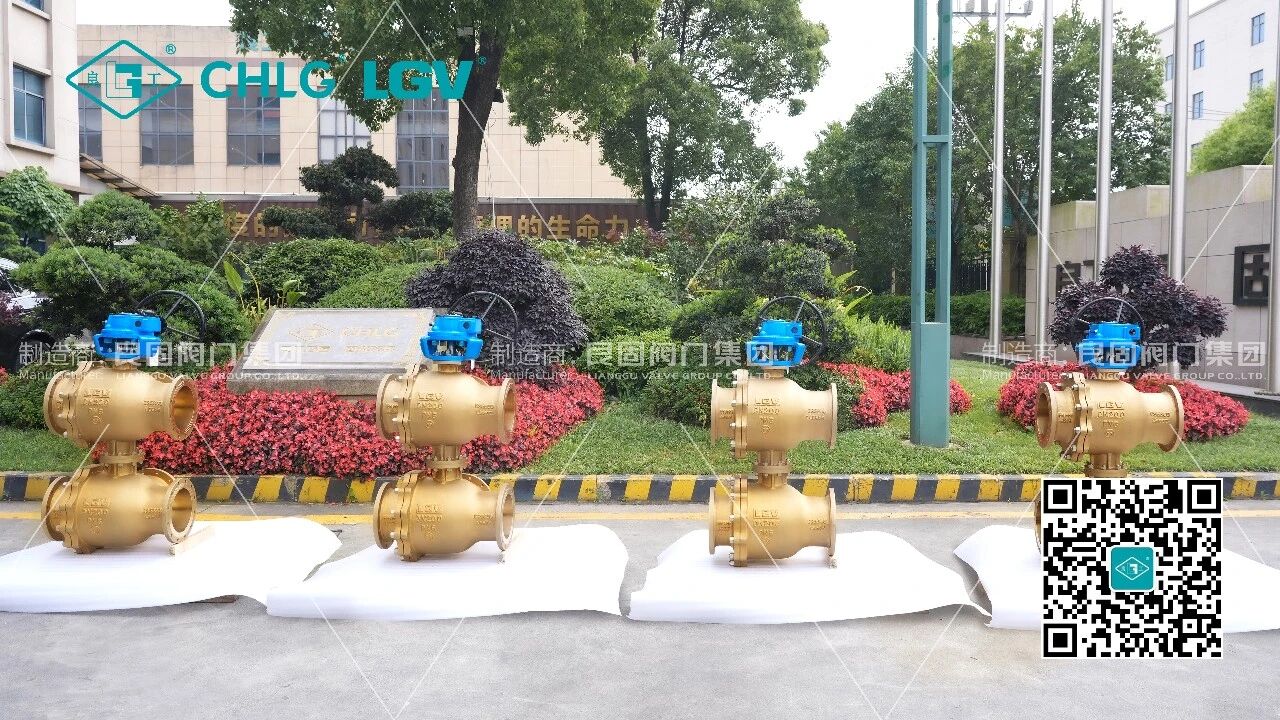

CMD368(中国区)体育有限公司官网近期交付的 C95800 铝青铜联动式双联三通球阀组，正是为这一需要造作交付。

它专为海水介质、双路冗余和陆续运行工况打造，确保双路系统能安全、靠得住地切换。

The continuous operation of large ship engines relies on a stable seawater cooling system.

Within this system, the uninterrupted operation of filters directly affects the safety and stability of the entire system.

Ship seawater filtration systems typically use a dual-line configuration: one line in operation while the other is on standby, or one line under maintenance while the other continues working.

So how can the two filtration lines switch reliably without shutdown or interruption?

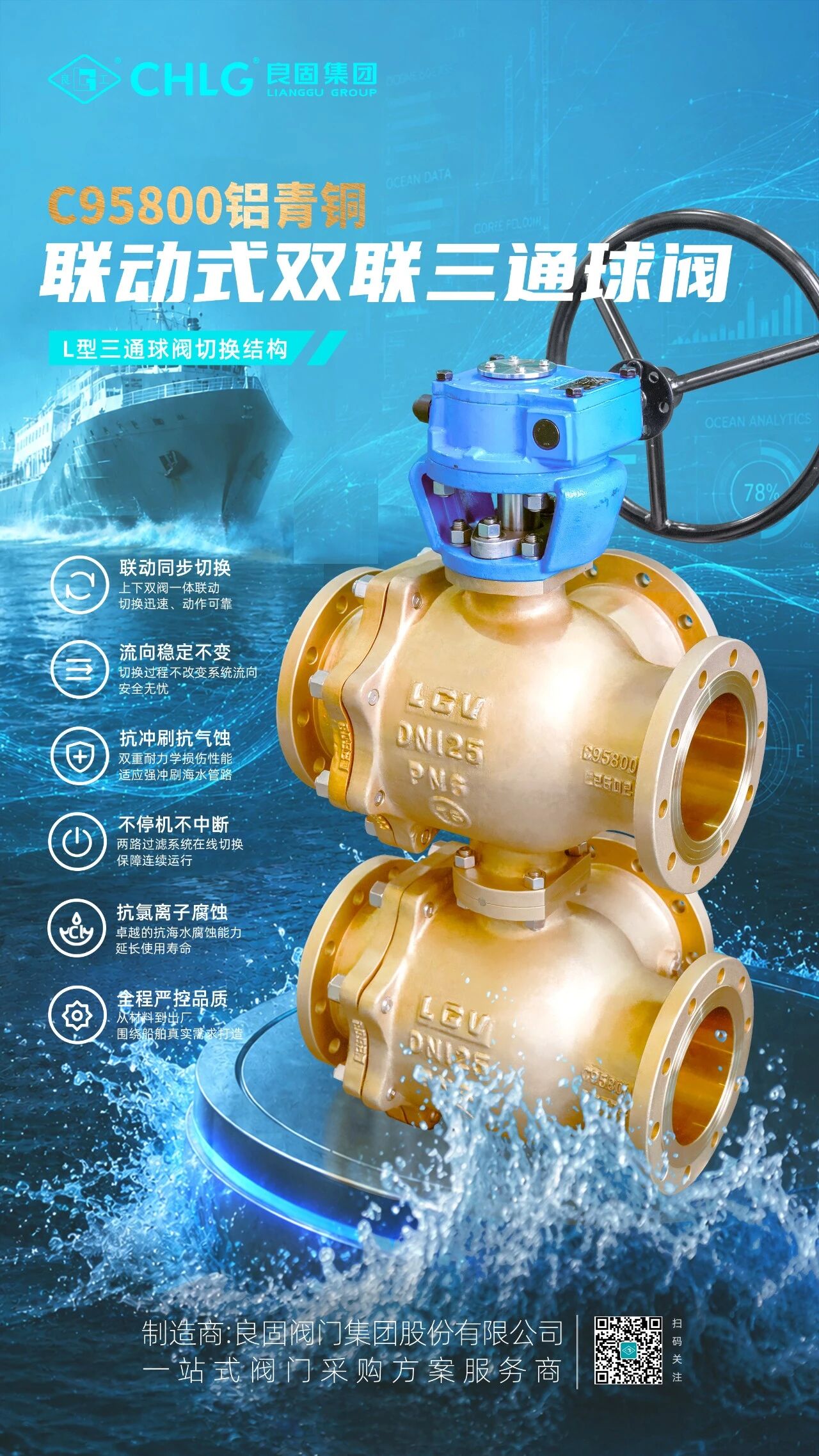

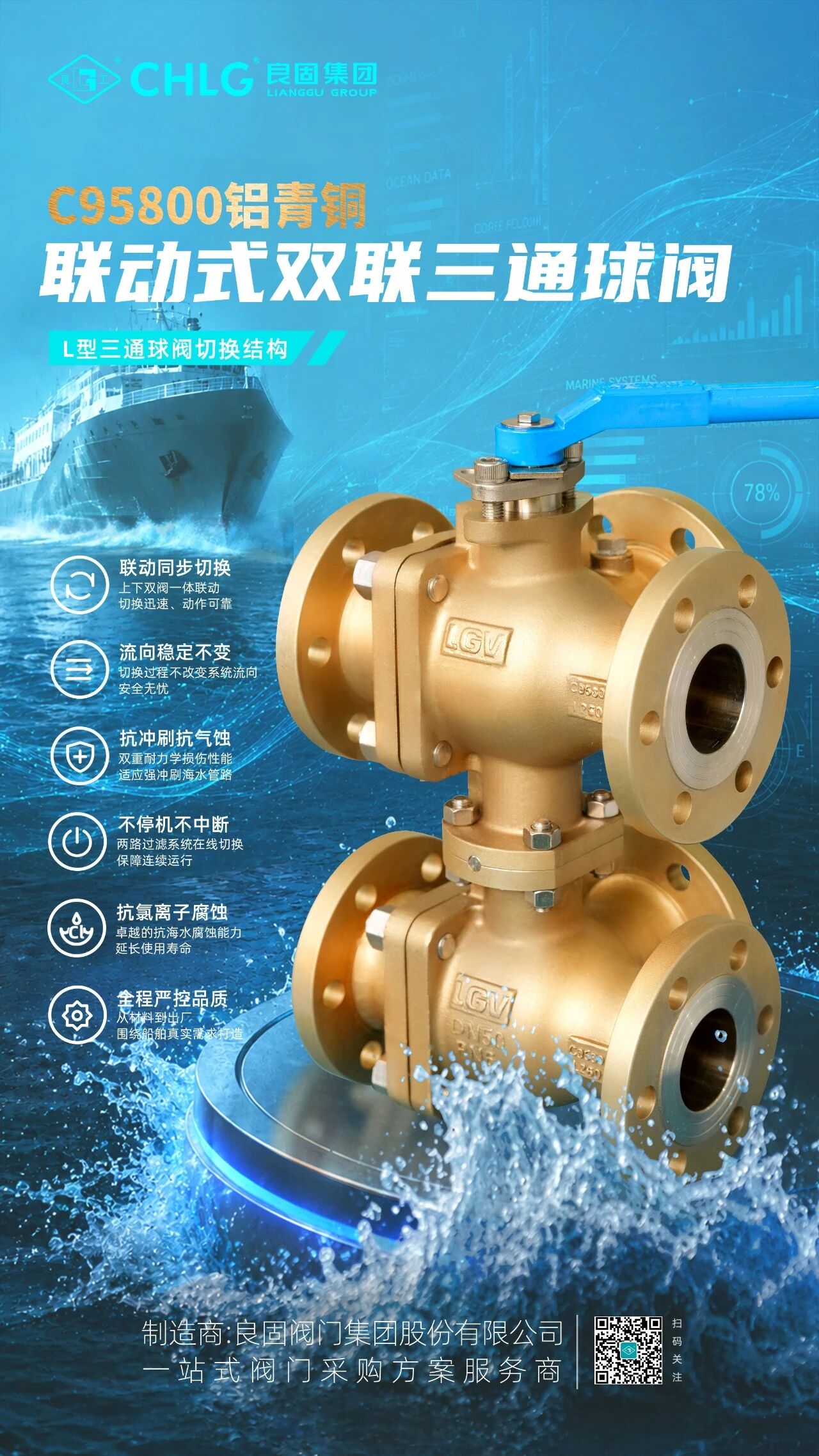

The C95800 Aluminum Bronze Actuated Dual Three-Way Ball Valve Assembly recently delivered by LIANGGU Valve is designed precisely for this requirement.

It is engineered for seawater service, dual-line redundancy, and continuous operation, ensuring safe and reliable switching between the two lines.

这款产品，“特殊”在哪里？

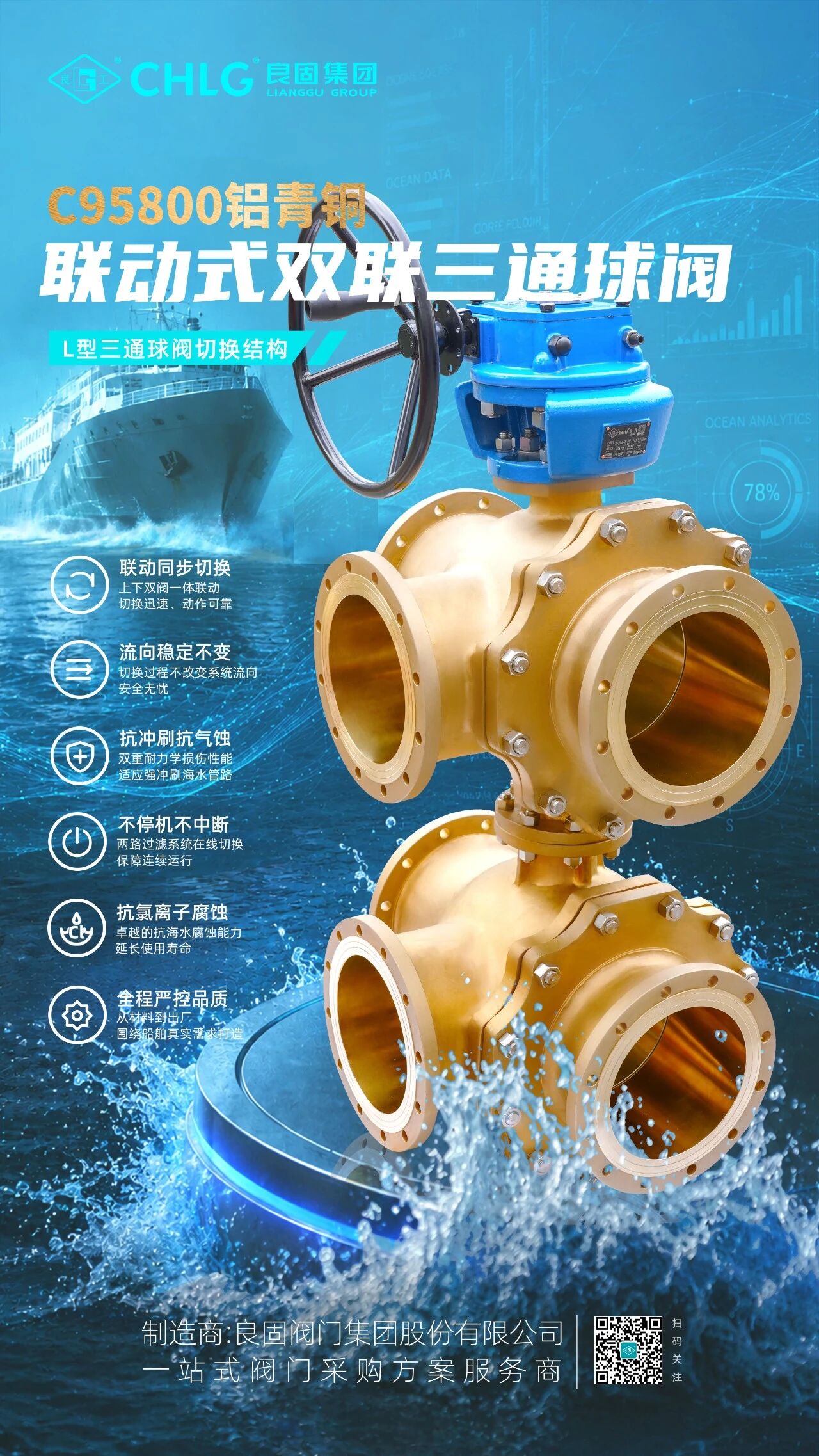

结构上，这款产品选取高低双三通球阀联动设计。

两只三通球阀通过联动机构同步作为，在不扭转系统既定流向的前提下，实现两路过滤通路之间的急剧切换。

主题作用不是分流，而是换向：

1-双阀联动，同步切换

高凳拽体联动节造，预防多阀独立操作带来的分歧步问题，使切换作为更直接、更清澈。

2-贴合双路过滤器工况

合用于一路工作、一路备用的系统设计，也合用于过滤器在线守护时的急剧切换需要。

3-提高系统运行确定性

在船舶陆续运行场景中，越是关键的切换节点，越必要削减报答不确定性。联动式阀组，性质上就是在降低系统切换风险。

Structurally, this product features an actuated dual three-way ball valve design.

The two three-way ball valves operate synchronously through a linkage mechanism, enabling rapid switching between the two filtration lines without altering the system’s predefined flow path.

Its core function is not flow distribution, but directional change:

1-Synchronized dual-valve operation

The upper and lower valve bodies are linked for coordinated control, avoiding desynchronization issues caused by independent valve operation, and making the switching action more direct and precise.

2-Optimized for dual-line filtration systems

Suitable for systems with one line in operation and one on standby, as well as for scenarios requiring rapid switching during online filter maintenance.

3-Enhanced operational certainty

In continuous shipboard operations, the more critical the switching point, the greater the need to minimize human-induced uncertainty. The actuated valve assembly effectively reduces switching risks within the system.

若是说结构解决的是切换问题，那么材质解决的就是寿命与不变性问题。

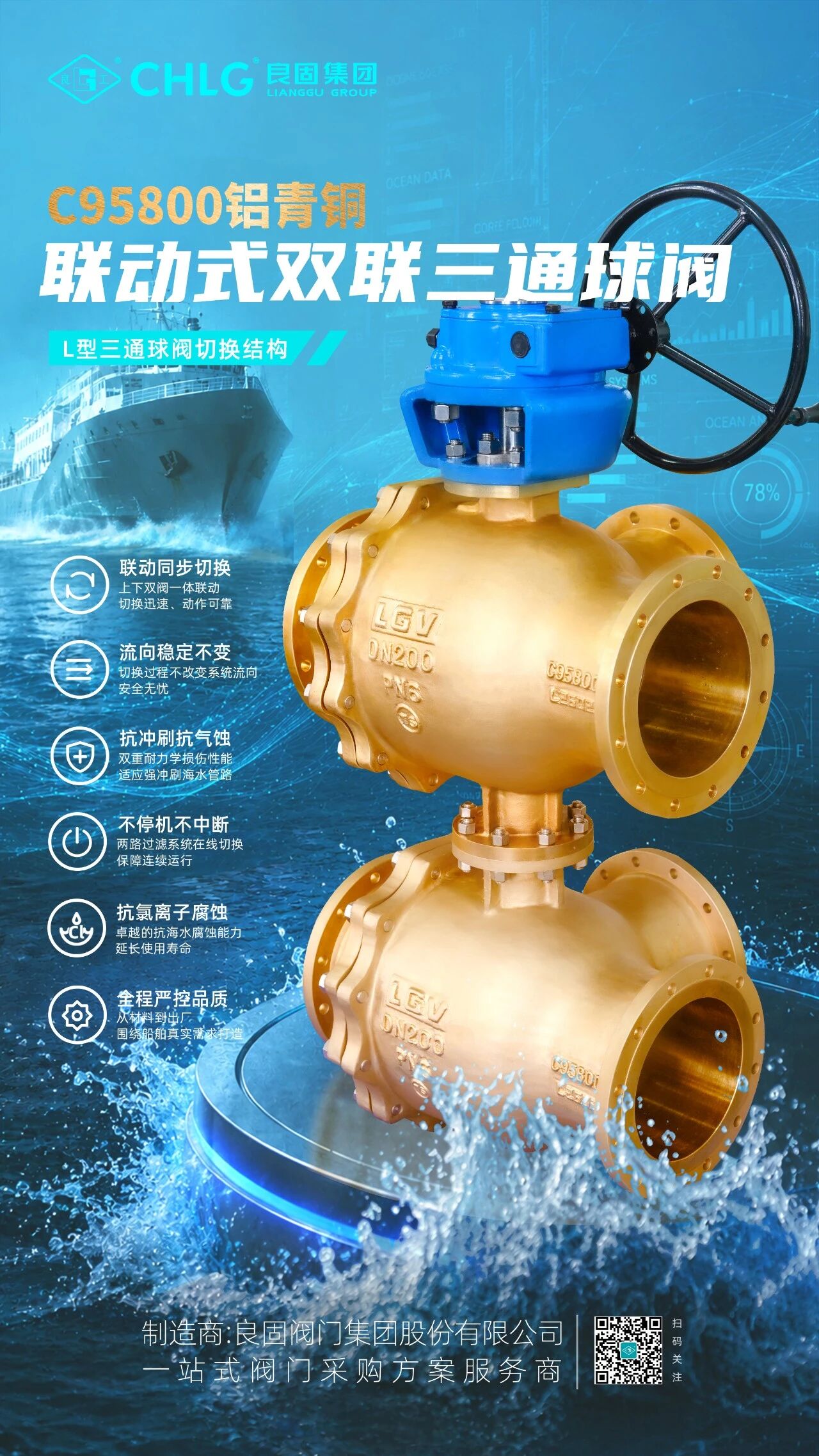

这款阀组阀体选取C95800 铝青铜材质。

在船舶及海工领域，这是一类成熟且拥有代表性的耐海水资料，尤其合用于高盐、高湿、高侵蚀环境下的海水介质工况。

其重要优势蕴含：

-优异的抗海水侵蚀能力；

-优良的抗氯离子侵蚀机能；

-较强的抗冲刷能力；

-优良的抗气蚀机能。

If the design addresses the switching function, the material ensures durability and operational stability.

The valve bodies of this assembly are made of C95800 Aluminum Bronze.

In the shipbuilding and offshore industry, this is a well-established and representative material for seawater service, particularly suited for high-salinity, high-humidity, and highly corrosive seawater conditions.

Its key advantages include:

-Excellent resistance to seawater corrosion；

-Strong resistance to chloride-induced corrosion；

-High erosion resistance；

-Good cavitation resistance.

合用场景

C95800 铝青铜联动式双联三通球阀组合用于以下工况：

-船舶海水过滤系统

-船舶冷却海水系统

-海工平台海水管路

-海水介质双路切换系统

-一用一备冗余管路系统

凡是对双路切换靠得住性、海水耐侵蚀机能、舷陆续运行能力有要求的场景，这类联动式阀组都具备明确利用价值。

This product is suitable for the following applications:

-Shipboard seawater filtration systems；

-Ship cooling seawater systems；

-Offshore platform seawater piping；

-Dual-line seawater switching systems ；

-One-active, one-standby redundant piping systems；

In any scenario requiring reliable dual-line switching, seawater corrosion resistance, and continuous system operation, this actuated valve assembly demonstrates clear application value.

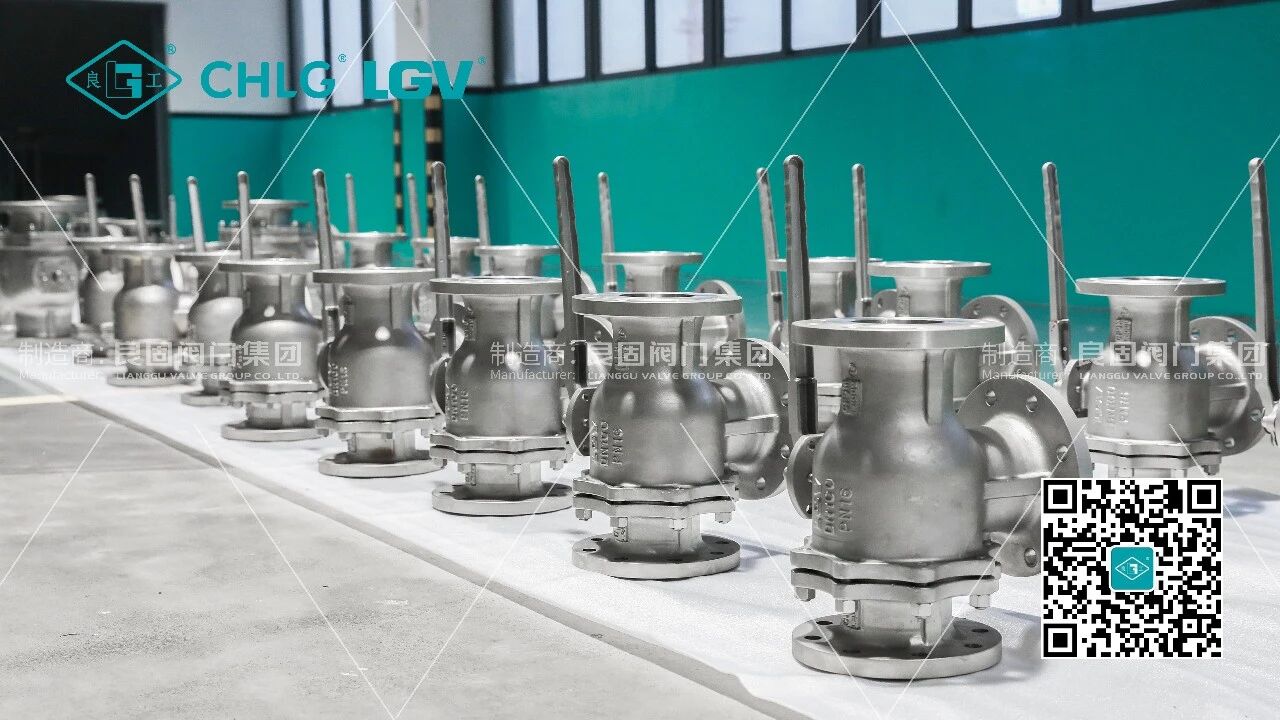

目前，我们可凭据分歧介质、压力等级及系统工况需要，提供L型、T型等多种流路大局的三通球阀产品，材质覆盖WCB、CF8、CF8M、不锈钢、双相钢、铝青铜等多种类型，合用于石油、化工、船舶、电力、水处置、海工等行业的分流、合流、换向及双路切换工况。

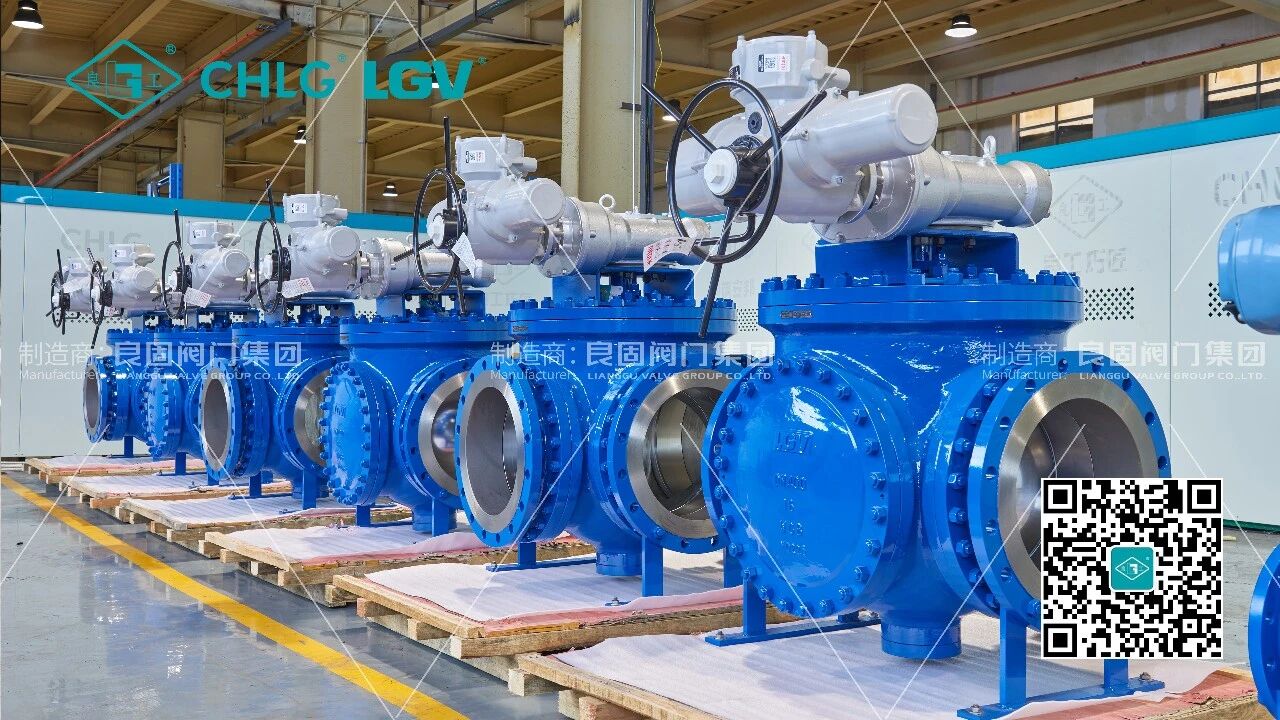

针对分歧项目需要，产品可配套手动、气动、电动等多种驱动方式，并支持高温、高压、耐侵蚀、防冲刷等特殊工况定造。

从尺度型三通球阀，到复杂工况下的联动式三通阀组，CMD368(中国区)体育有限公司官网持续萦绕工业流体节造中的“切换”需要，堆集产品造作与工程利用经验，为更多复杂管路系统提供不变靠得住的阀门解决规划。

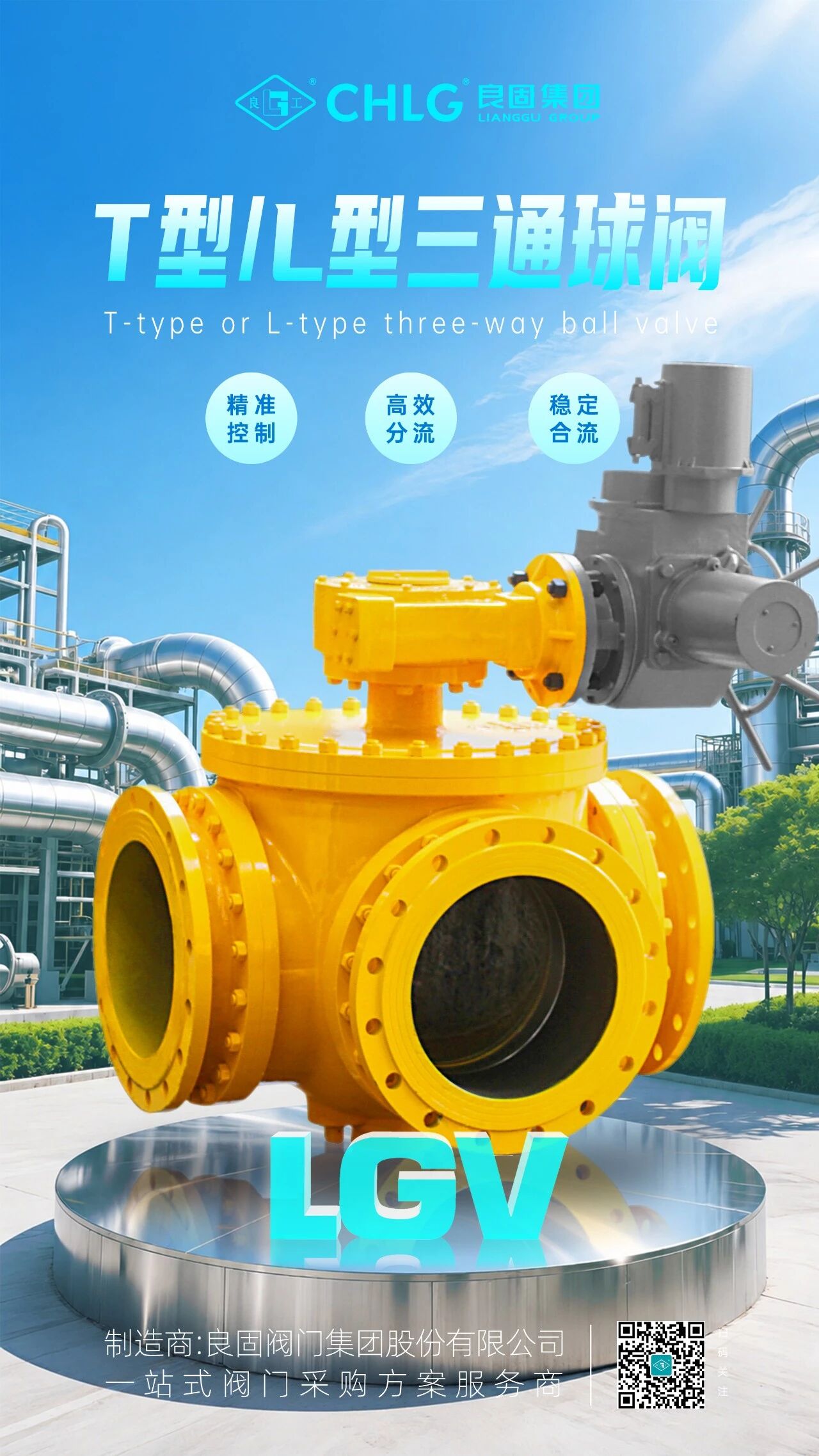

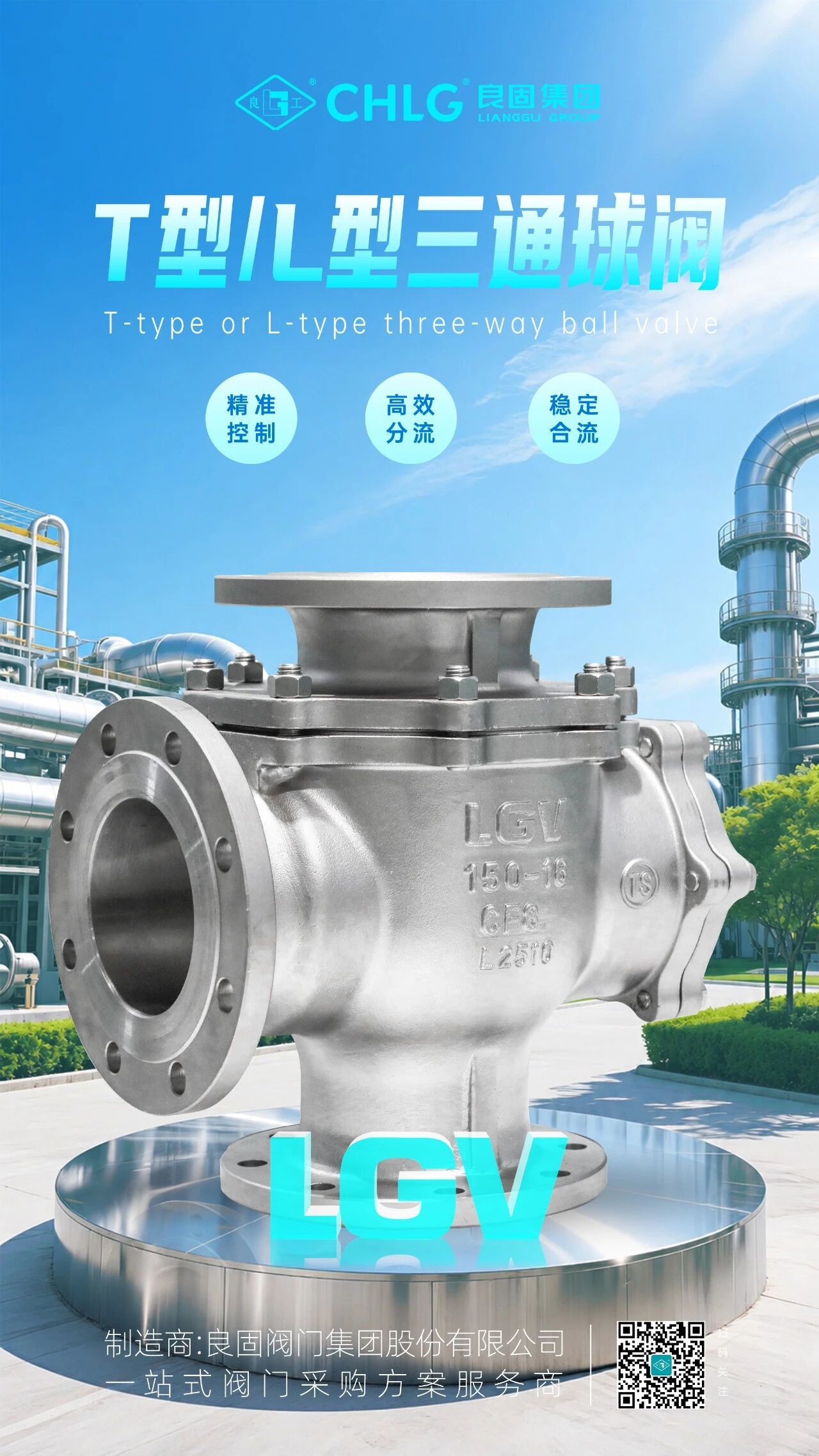

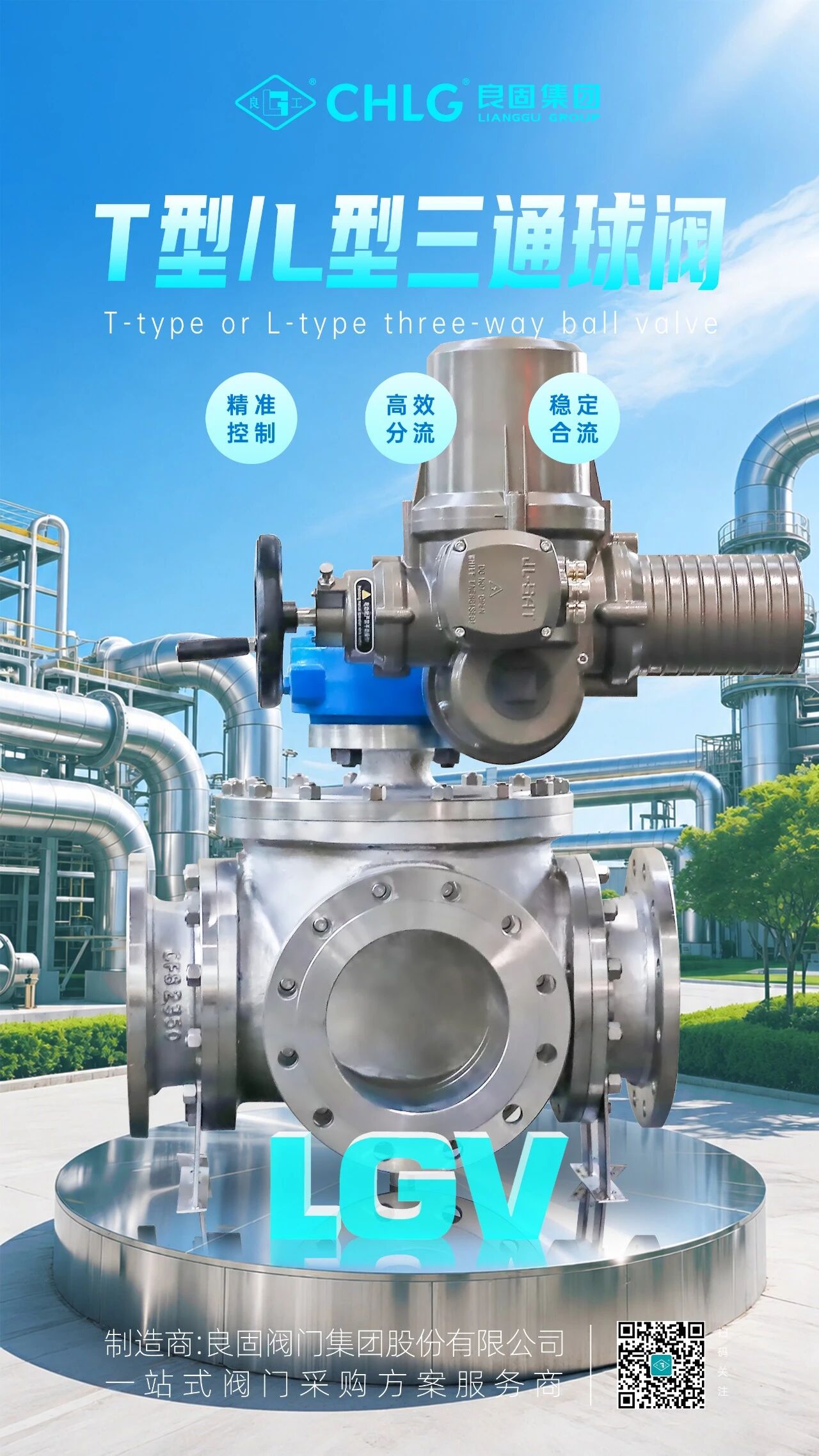

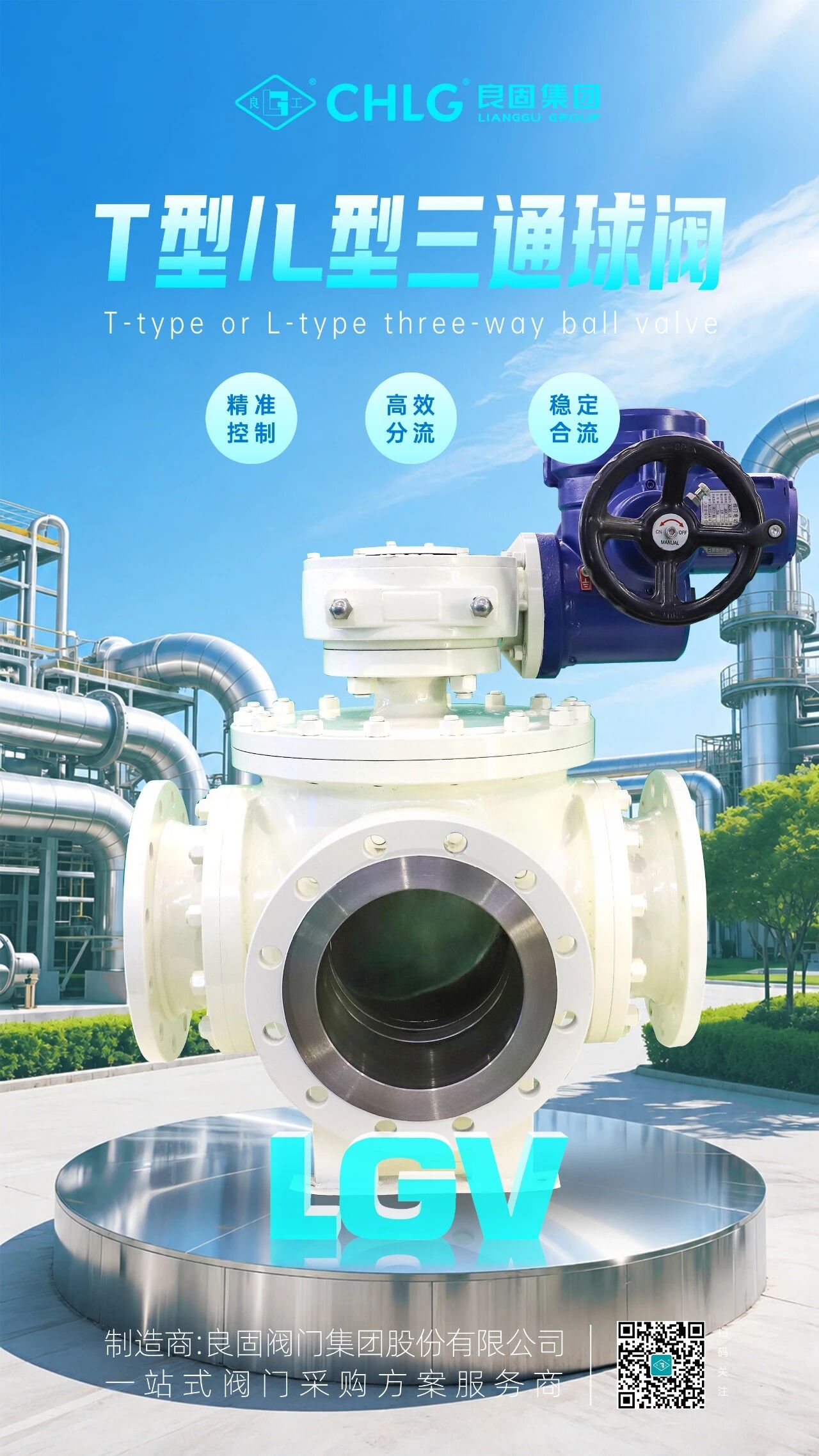

Currently, we can provide a wide range of three-way ball valves in L-port and T-port configurations to meet different media, pressure ratings, and operating conditions.

Available materials include WCB, CF8, CF8M, stainless steel, duplex stainless steel, and aluminum bronze, widely applied in flow diverting, mixing, switching, and dual-line changeover systems across oil & gas, chemical processing, marine, power generation, water treatment, and offshore industries.

According to project requirements, the valves can be equipped with manual, pneumatic, or electric actuators, and support customized solutions for high-temperature, high-pressure, corrosion-resistant, and anti-abrasion service conditions.

From standard three-way ball valves to linkage-operated three-way valve assemblies for complex operating systems, LIANGGU continues to build extensive manufacturing and engineering experience around industrial flow switching applications, providing reliable valve solutions for demanding pipeline systems.
